Grinding & Cutting Disc

Grinding & Cutting Disc

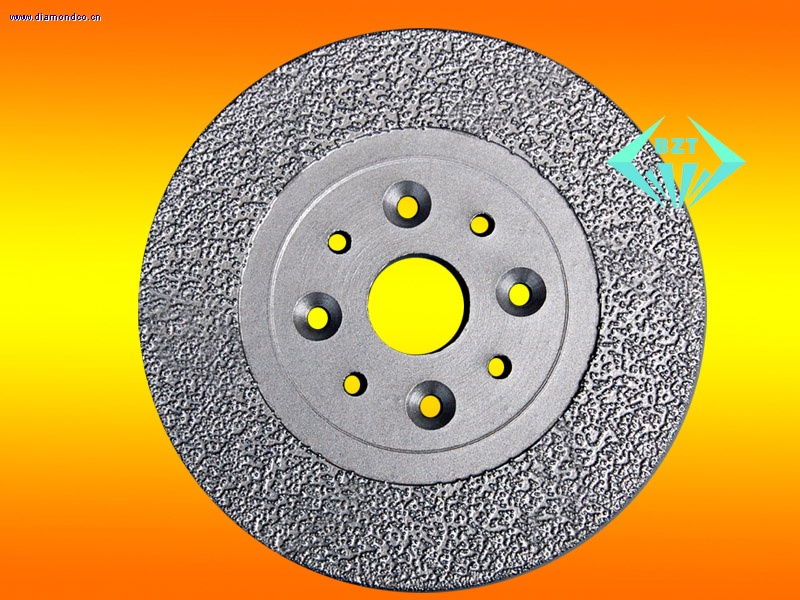

Product name : Grinding & Cutting Disc
Item : EGC401B
Details :
 Technology: Take use of the melting point of solder is lower than the parent metal, melting solder and wetting parent metal, and densely filling the soldering seam, solder and parent metal bonding each other, formed a strong connection
Characteristic: Sharp, better abrasion resistance, strong bonding, not easy to spall off
Application: Use for cutting and grinding different kind of glass, granite, marble and other stone; wall brick and floor tile, sanitary ware, ceramic handle, and some metal products, such as aluminum, stainless steel, etc
The grinding efficiency of brazed diamond tools is 3 times more than electroplating tools, is 3-5 times more than the diamond sintered product. The service life is 3 times more than the electroplating tools. The diamond of brazed tools does not fall off after working, it can keep the surface morphology.

Size: 80-400mm diameter, Hole size16, 20, 22.23, 24.5, or M14, 5/8-11 threaded hole
Working surface style: grinding ring, twill, & different patterns.
Appearance:  parallel and cymbal shape (cup type)
OEM, ODM available

The flange installation position can be changed to use another side.
